Our Multi Blade received very positive feedback from our Clients in the beginning of December 2019.
Clients using 12pcs combination to cutting Basalt.

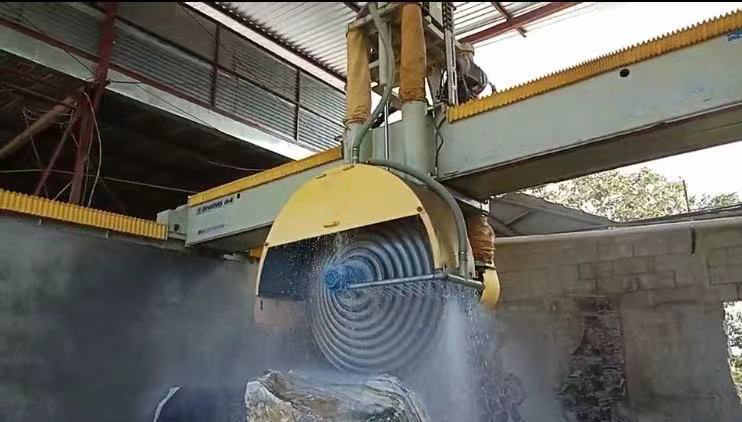

The multi blade cutting disc bring to his factory significant output and efficiency.

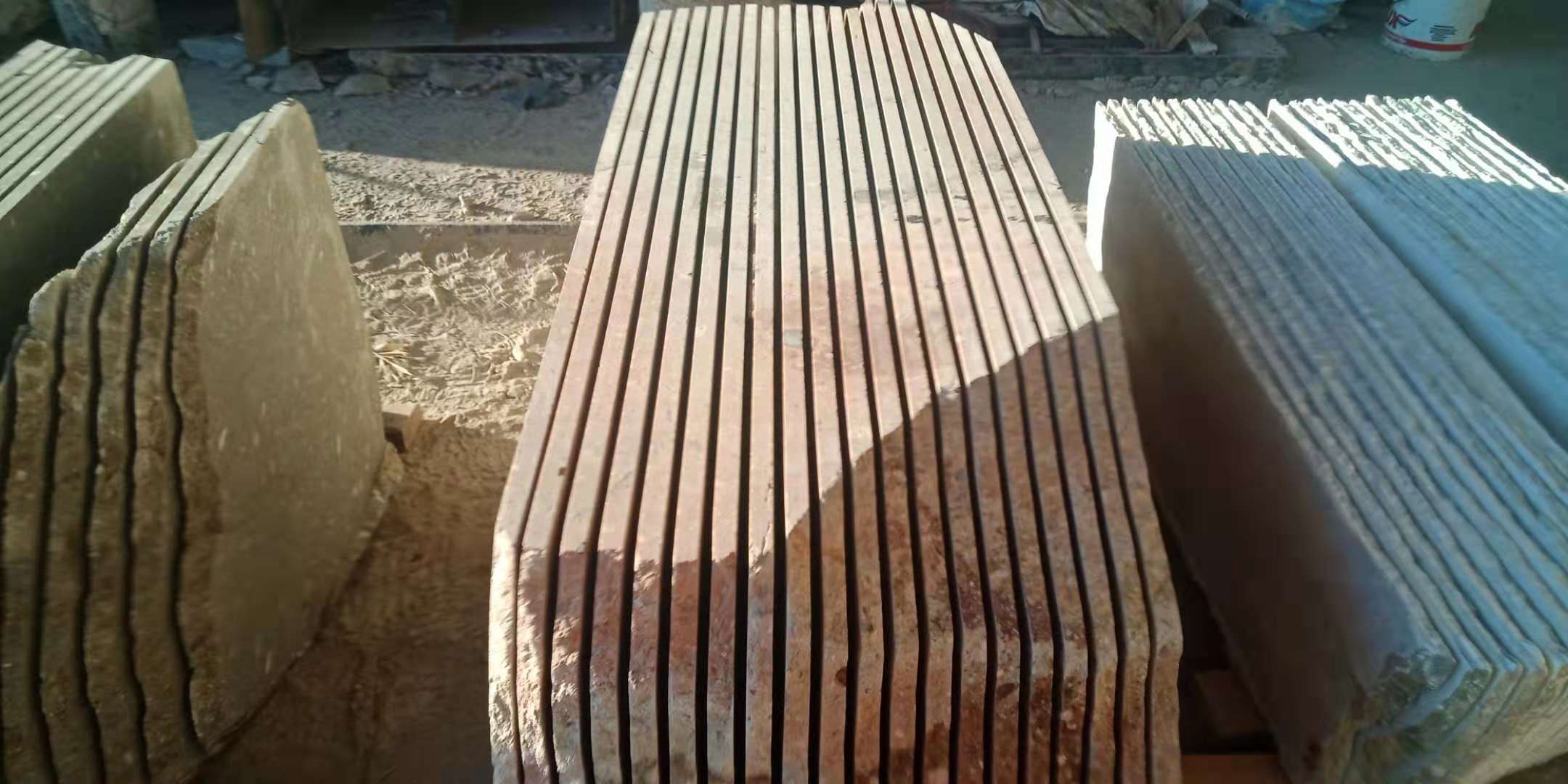

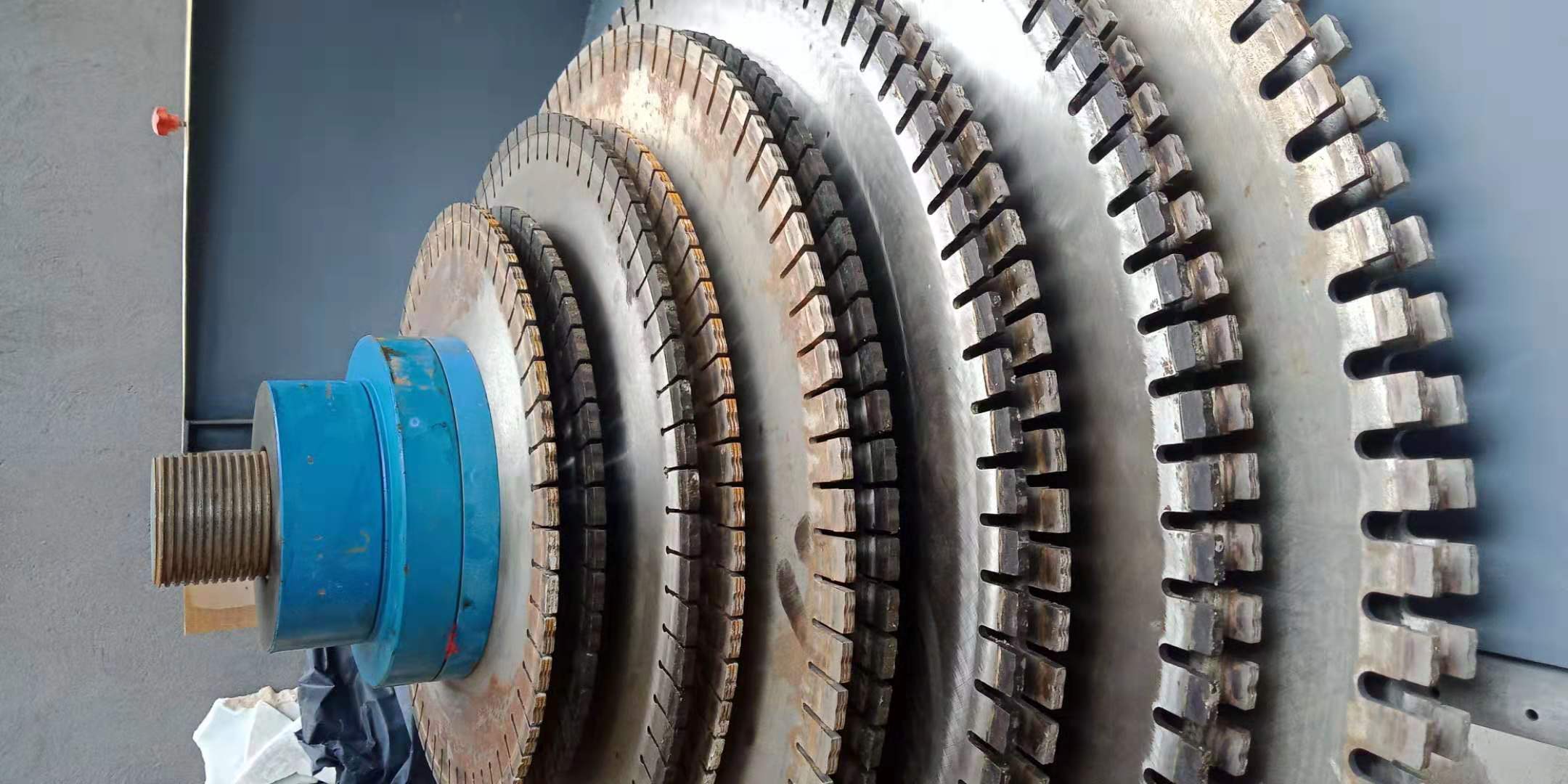

the cores working in the same set share the same parameter in diameter, bore hole, thickness, hardness, flatness, axial run out, and tension. Cutting synchronously with multi blades, the product’s cutting efficiency is enhanced, yielding a higher yield rate of blocks.
There are six pieces set forφ1600, four pieces set forφ2000, φ1800 and φ1600, three piec
set forφ2000, φ1800, φ1650 andφ1600, and two pieces set forφ1800, φ1650 andφ1600,etc. The product can greatly improve cutting efficiency and decrease the waste of block.
Multi-blades | Diameter | Core Thickness |
9PCS | 2184mm | 5.5/6.5/7.2mm |
1984mm | ||
1784mm | ||
1584mm | ||
1384mm | ||
1184mm | ||
984mm | ||
790mm | ||
590mm | ||
Multi-blades | Diameter | Core Thickness |
5PCS | 2284mm | 5.5/6.5/7.2mm |
1884mm | ||
1484mm | ||
1084mm | ||
690mm | ||
Multi-blades | Diameter | Core Thickness |
4PCS | 2084mm | 5.5/6.5/7.2mm |
1684mm | ||
1284mm | ||
884mm | ||
Multi-blades | Diameter | Core Thickness |
4PCS | 1984mm | 5.5/6.5/7.2mm |
1584mm | ||
1184mm | ||
790mm |
