Specification detail:
1.Inner core: 60/50mm or can be design according to your requirement.
2.Usage:for marble cutting.Please tell us the hardness of the marble you want to cut(or send us the image of stone is ok) and other requirements,our engineer will design the right products for you.Thanks.

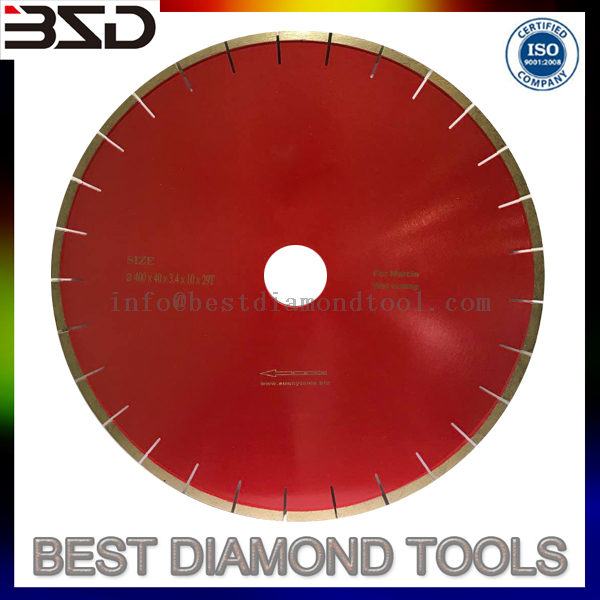

Marble Diamond Disc Diamond saw blade parameters:
Diameter (mm) | Segment dimension L*W*H | Core thickness (mm) | Segment number (pcs) |
300 | 40*3.2*8(10)&40/42*3.2*8(10) | 1.8/2.2/2.4 | 22 |
350 | 40*3.4*8(10)&40/42*3.4*8(10) | 1.8/2.2/2.4 | 25 |
400 | 40*3.6*8(10)&40/42*3.6*8(10) | 1.8/2.6/2.8 | 29 |
450 | 40*4.4*8(10) | 2.2/2.8/3.3 | 33 |
500 | 40*5.5*8(10) | 3.0/3.3 | 36 |
550 | 40*5.0*8(10) | 3.0/3.5 | 40 |
600/625 | 40*6.0*8(10) | 3.0/3.6 | 42 |
700/725 | 40*6.5*8(10) | 3.6/4.0 | 46 |
800/825 | 40*6.5*8(10) | 4.5/5.0 | 46 |
900 | 30*8*10 | 5.0 | 64 |
Specification detail:
1.Inner core: 60/50mm or can be design according to your requirement.
2.Usage:for marble cutting.Please tell us the hardness of the marble you want to cut(or send us the image of stone is ok) and other requirements,our engineer will design the right products for you.Thanks.
Marble Diamond Disc Diamond saw blade parameters:
Diameter (mm) | Segment dimension L*W*H | Core thickness (mm) | Segment number (pcs) |
300 | 40*3.2*8(10)&40/42*3.2*8(10) | 1.8/2.2/2.4 | 22 |
350 | 40*3.4*8(10)&40/42*3.4*8(10) | 1.8/2.2/2.4 | 25 |
400 | 40*3.6*8(10)&40/42*3.6*8(10) | 1.8/2.6/2.8 | 29 |
450 | 40*4.4*8(10) | 2.2/2.8/3.3 | 33 |
500 | 40*5.5*8(10) | 3.0/3.3 | 36 |
550 | 40*5.0*8(10) | 3.0/3.5 | 40 |
600/625 | 40*6.0*8(10) | 3.0/3.6 | 42 |
700/725 | 40*6.5*8(10) | 3.6/4.0 | 46 |
800/825 | 40*6.5*8(10) | 4.5/5.0 | 46 |
900 | 30*8*10 | 5.0 | 64 |
