Product Description

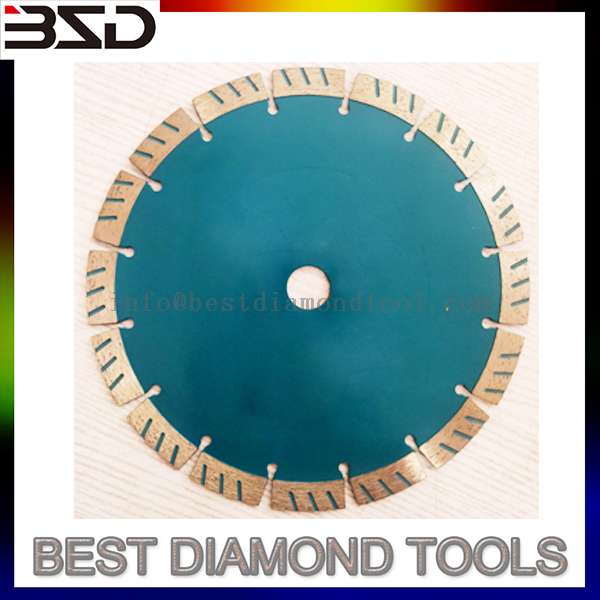

Abrasion resistance 15mm height diamond saw blade
| Diameter | 230mm |
| Central hole | 22.2 |
| Use | Dry use |
| Segment Height | 15mm |
*Below are some other specifications for reference.
| Outer Diameter | Bore Diameter(mm) | Segment Width(mm) | Segment Height(mm) | |
| mm | Inch | |||
| 105 | 4" | 20 | 2.2 | 7/10 |
| 110 | 4.3" | 22.23 | 2.2 | 7/10 |
| 115 | 4.5" | 22.23 | 2.5 | 7/10 |
| 125 | 5" | 22.23 | 2.5 | 7/10 |
| 150 | 6" | 22.23 | 3.0 | 7/10 |
| 180 | 7" | 22.23 | 3.0 | 7/10 |
| 200 | 8" | 22.23 | 3.2 | 7/10 |
| 230 | 9" | 22.23 | 3.2 | 7/10 |
| 300 | 12" | 25.4 | 4.0 | 7/10 |
*Other specifications are also available upon request.
