Bush Hammer Carbide Star Grinding Plate
You are here: Home » Products » Stone Grinding Polishing Wheel » Bush Hammer Plate » Bush Hammer Carbide Star Grinding Plate

Bush Hammer Carbide Star Grinding Plate

Quantity:
  • BSD

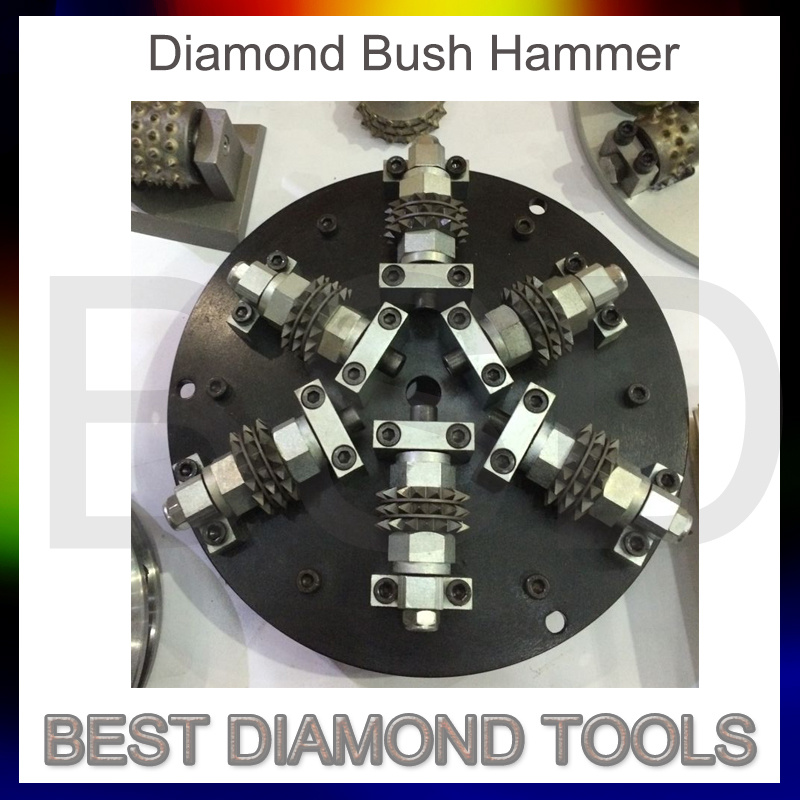

Bush Hammer Disk

This 5/8-11 thread bush hammer tool can be used with floor machines or powerful grinders for bush hammering of concrete floors and surfaces.
    Adjustment of grit for bush-hammered surface
    The Roughness of the bush hammered surface can be adjusted with our bush hammer through adjustment of spring elasticity on the bush hammer, or through the pressure of the manual grinding machine. Loosening spring elasticity or less pressure with increase the roughness of hammering result and tightening the springs or increase machine pressure will reduce roughness to give the bush hammered surface a finer look.


Use and maintenance of bush hammer

  • Operating Speed: 700-800 RPM

  • Wet use strongly recommended and the more water the better

  • Do not apply too much pressure on bush hammer. This will prevent roller from stopping and thus decrease the life span of the tungsten steel

  • After each use, please clean up rollers, dry and apply oil to the spindles. It will be ideal to submerge the rollers in oil to prevent spindle rust

  • Roller tips can be re-dressed with diamond blades when they become inefficient.

Specification
φ125mm*3T*30S
φ150mm*4T*30S
Roller φ32mm*22*30S(with stand)
Roller φ32mm*22*30S(without stand)
φ200mm*5T*30S
φ250mm*6T*30S
φ300mm*9T*30S
φ350mm*12T*30S
φ400mm*15T*30S
φ450mm*18T*30S
Roller φ45mm*32*30S(with stand)
Roller φ45mm*32*30S(without stand)
φ200mm*3T*45S
φ250mm*5T*45S
φ300mm*6T*45S
φ350mm*9T*45S
φ400mm*10T*45S
φ450mm*12T*45S
Roller φ45mm*53*45S(with stand)
Roller φ45mm*53*45S(without stand)
Frankfurt Roller φ45mm*L53*45S(with base and stand)
Frankfurt Roller φ52mm*L53*45S(with stand)
Frankfurt Roller φ52mm*L53*45S(without stand)
Frankfurt Roller φ52mm*L53*60S(with base and stand)
Frankfurt Roller φ52mm*L53*60S(with stand)
Frankfurt Roller φ52mm*L53*60S(without stand)
φ300mm*6T*15S
φ300mm*6T*30S
φ300mm*6T*45S
Roller  φ45mm*32*15S(with stand)
Roller φ45mm*32*30S(with stand)
Roller φ45mm*53*45S(with stand)
φ125mm star carbide bush hammer *3T*2 start/Roller
φ150mm star carbide bush hammer *4T*2 start/Roller
star carbide roller *2 star/roller (with stand)
φ125mm *3T*1pc/roller
φ150mm *4T*1pc/roller
Roller *1pc/roller(with stand)
φ300mm star carbide bush hammer *6T*3 star/roller
φ350mm star carbide bush hammer *8T*3 star/roller
φ300mm star roller (3 star/roller)

Bush-Hammer-Carbide-Star-Grinding-Plate (1)Bush-Hammer-Carbide-Star-Grinding-Plate (2)Bush-Hammer-Carbide-Star-Grinding-Plate (3)Bush-Hammer-Carbide-Star-Grinding-Plate (4)Bush-Hammer-Carbide-Star-Grinding-Plate (5)Bush-Hammer-Carbide-Star-Grinding-Plate
