D52 mm Diamond Core Bit for Reinforced Concrete,UNC1-1/4''-7
You are here: Home » Products » Diamond Core Drill Bit » Core Drill » D52 mm Diamond Core Bit for Reinforced Concrete,UNC1-1/4''-7

Product Category

loading

D52 mm Diamond Core Bit for Reinforced Concrete,UNC1-1/4''-7

Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • BSD

Product Description

D52 mm Diamond Core Bit for Reinforced Concrete,UNC1-1/4''-7

Diameter
(mm)		 Working
Length (mm)		 Segment Dimension (mm)
L W H Quantity
32 70
/
300
/
360
/
400
/
450
/
500
/
550		 ring 3.0  10 1
42 23/19.7 3.0  10 4
52 23/20 3.5  10 5
62 24 3.5  10 5
68 24 3.5  10 6
72 24 4.0  10 6
82 24 4.0  10 7
92 24 4.0  10 8
102 24 4.0  10 9
112 24 4.0  10 9
132 24 4.0  10 10
152 24 4.0  10 12
162 24 4.0  10 12
172 24 4.0  10 13
182 24 4.0  10 13
202 24 4.0  10 14
220 24 4.5  10 15
250 24 4.5  10 20
275 24 4.5  10 22
302 24 4.5  10 24
320 24 4.5  10 24
350 24 4.5  10 24
400 24 4.5  10 30
450 24 5.0  10 30
500 24 5.0  10 30
600 24 5.0  10 30

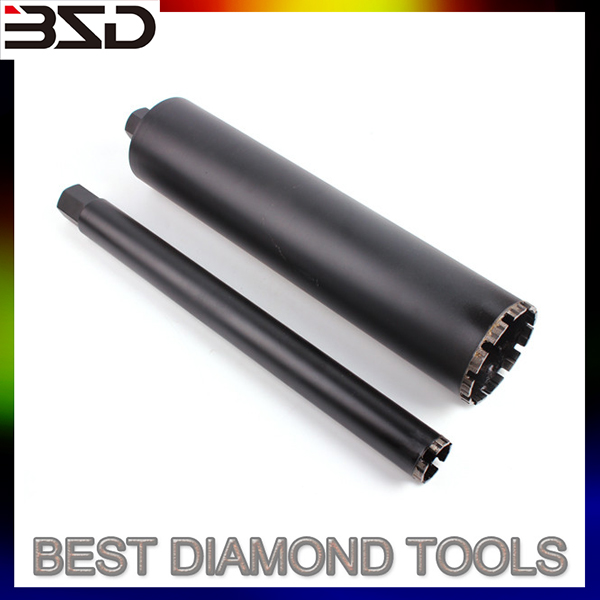

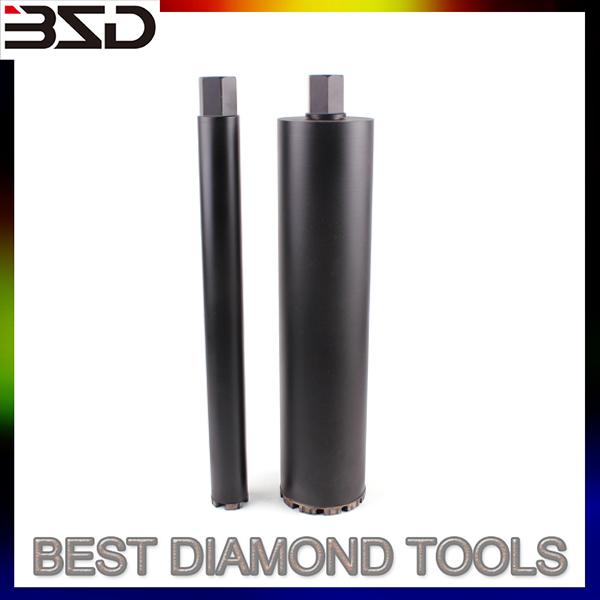

0616 BSD c10616 BSD c2



Produce Process

微信图片_20200323152549

diamond core drill bitpacking and shipping详情
