Product Description

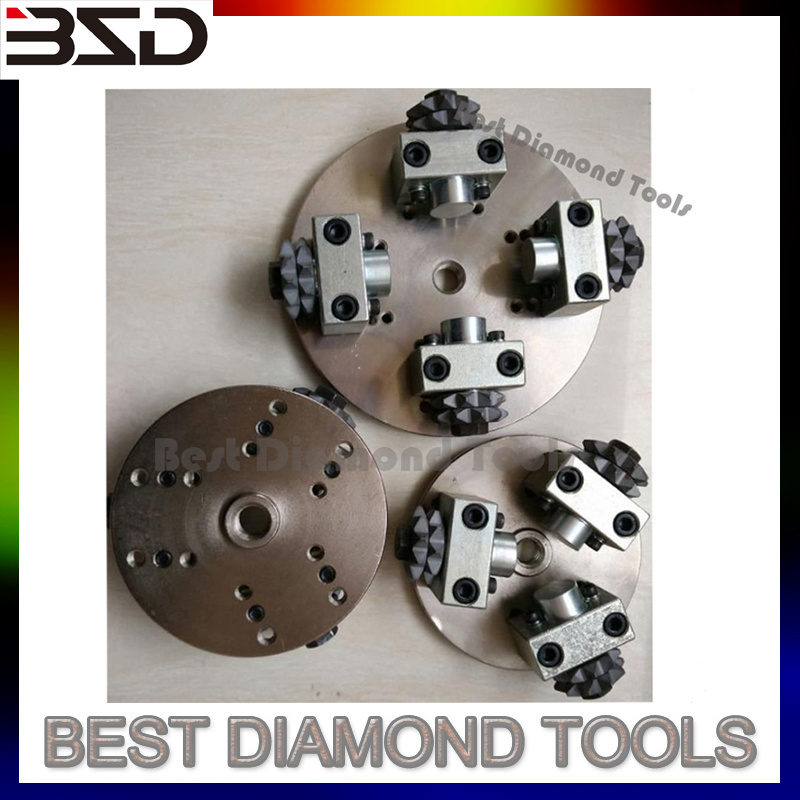

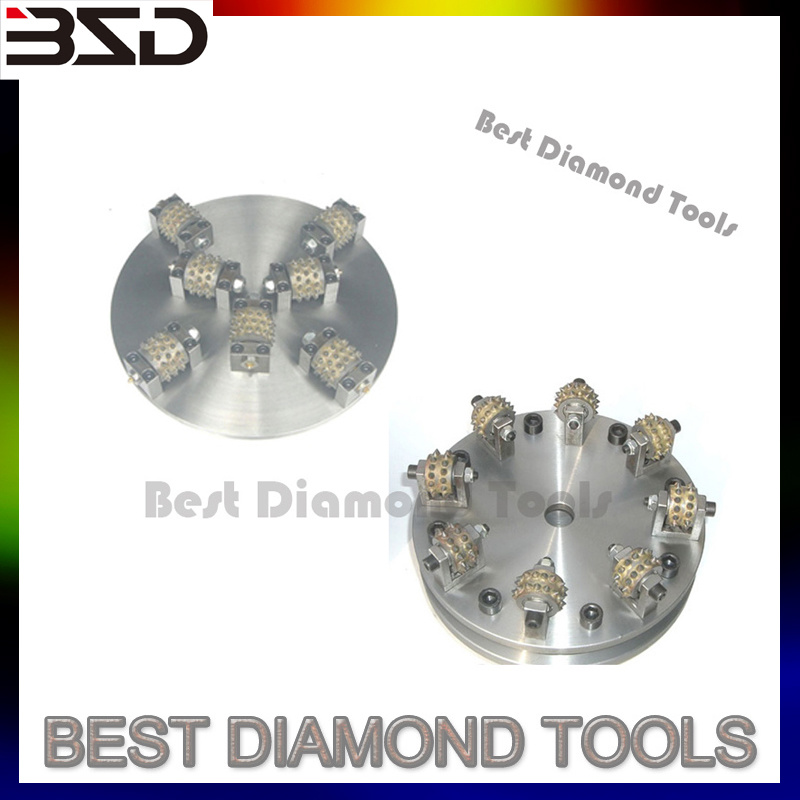

This 5/8-11 thread bush hammer tool can be used with floor machines or powerful grinders for bush hammering of concrete floors and surfaces.
Adjustment of grit for bush-hammered surface
The Roughness of the bush hammered surface can be adjusted with our bush hammer through adjustment of spring elasticity on the bush hammer, or through the pressure of the manual grinding machine. Loosening spring elasticity or less pressure with increase the roughness of hammering result and tightening the springs or increase machine pressure will reduce roughness to give the bush hammered surface a finer look.
Use and maintenance of bush hammer
Operating Speed: 700-800 RPM
Wet use strongly recommended and the more water the better
Do not apply too much pressure on bush hammer. This will prevent roller from stopping and thus decrease the life span of the tungsten steel
After each use, please clean up rollers, dry and apply oil to the spindles. It will be ideal to submerge the rollers in oil to prevent spindle rust

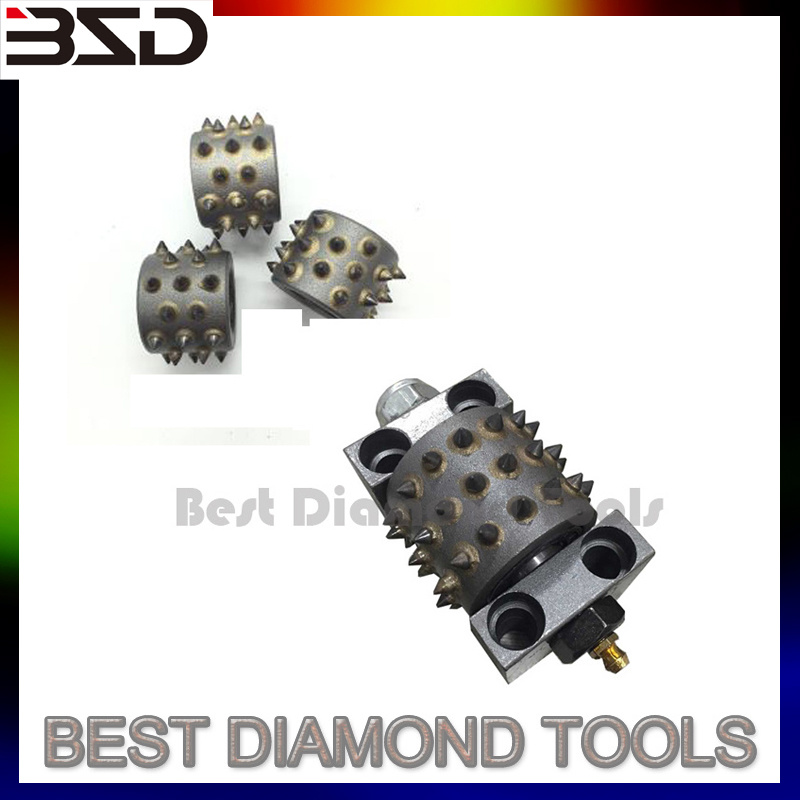

Roller tips can be re-dressed with diamond blades when they become inefficient.
Trapezoid Bush Hammer diamond grinding Tool for Creating Anti-Slip Surfaces
Specification |
φ125mm*3T*30S |
φ150mm*4T*30S |
Roller φ32mm*22*30S(with stand) |
Roller φ32mm*22*30S(without stand) |
φ200mm*5T*30S |
φ250mm*6T*30S |
φ300mm*9T*30S |
φ350mm*12T*30S |
φ400mm*15T*30S |
φ450mm*18T*30S |
Roller φ45mm*32*30S(with stand) |
Roller φ45mm*32*30S(without stand) |
φ200mm*3T*45S |
φ250mm*5T*45S |
φ300mm*6T*45S |
φ350mm*9T*45S |
φ400mm*10T*45S |
φ450mm*12T*45S |
Roller φ45mm*53*45S(with stand) |
Roller φ45mm*53*45S(without stand) |
Frankfurt Roller φ45mm*L53*45S(with base and stand) |
Frankfurt Roller φ52mm*L53*45S(with stand) |
Frankfurt Roller φ52mm*L53*45S(without stand) |
Frankfurt Roller φ52mm*L53*60S(with base and stand) |
Frankfurt Roller φ52mm*L53*60S(with stand) |
Frankfurt Roller φ52mm*L53*60S(without stand) |
φ300mm*6T*15S |
φ300mm*6T*30S |
φ300mm*6T*45S |
Roller φ45mm*32*15S(with stand) |
Roller φ45mm*32*30S(with stand) |
Roller φ45mm*53*45S(with stand) |
φ125mm star carbide bush hammer *3T*2 start/Roller |
φ150mm star carbide bush hammer *4T*2 start/Roller |
star carbide roller *2 star/roller (with stand) |
φ125mm *3T*1pc/roller |
φ150mm *4T*1pc/roller |
Roller *1pc/roller(with stand) |
φ300mm star carbide bush hammer *6T*3 star/roller |
φ350mm star carbide bush hammer *8T*3 star/roller |
φ300mm star roller (3 star/roller) |
