Product Description

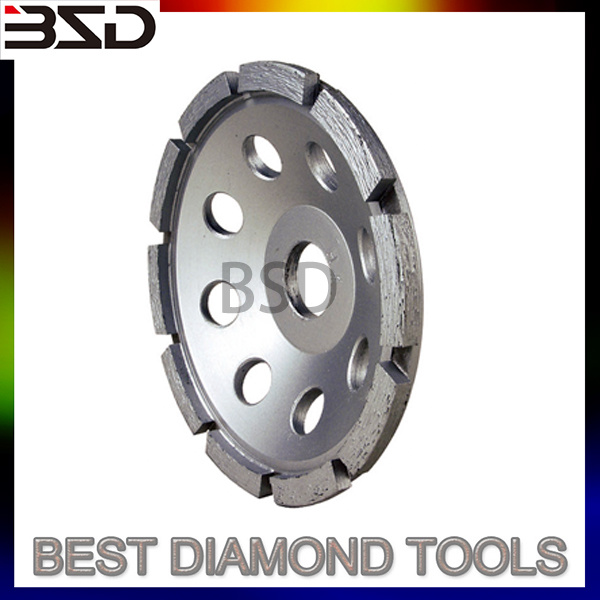

Single Row Cup Grinding Wheel | ||||
Out Diameter | Inner Hole(mm) | Segment Height(mm) | Segement Number | |
inch | mm | |||
2.1 | 55 | 22.23 | 34×5.2×8.3 | 4 |
2.6 | 67 | 22.23 | 0.4×0.1×0.3 | 16 |
3 | 80 | 22.23 | 30×5×7.2 | 6 |
4 | 100 | 22.23 | 30×5×7.2 | 8 |
4.3 | 110 | 22.23 | 30×5×7.2 | 9 |
4.5 | 115 | 22.23 | 30×5×7.2 | 10 |
5 | 125 | 22.23 | 30×5×7.2 | 12 |
6 | 150 | 22.23 | 30×5×7.2 | 12 |
7 | 180 | 22.23 | 30×5×7.2 | 13 |
8 | 200 | 22.23 | 30×5×7.2 | 13 |
9 | 230 | 22.23 | 30×5×7.2 | 18 |
Product Description
Single Row Cup Grinding Wheel | ||||
Out Diameter | Inner Hole(mm) | Segment Height(mm) | Segement Number | |
inch | mm | |||
2.1 | 55 | 22.23 | 34×5.2×8.3 | 4 |
2.6 | 67 | 22.23 | 0.4×0.1×0.3 | 16 |
3 | 80 | 22.23 | 30×5×7.2 | 6 |
4 | 100 | 22.23 | 30×5×7.2 | 8 |
4.3 | 110 | 22.23 | 30×5×7.2 | 9 |
4.5 | 115 | 22.23 | 30×5×7.2 | 10 |
5 | 125 | 22.23 | 30×5×7.2 | 12 |
6 | 150 | 22.23 | 30×5×7.2 | 12 |
7 | 180 | 22.23 | 30×5×7.2 | 13 |
8 | 200 | 22.23 | 30×5×7.2 | 13 |
9 | 230 | 22.23 | 30×5×7.2 | 18 |
