Product Description
Features:

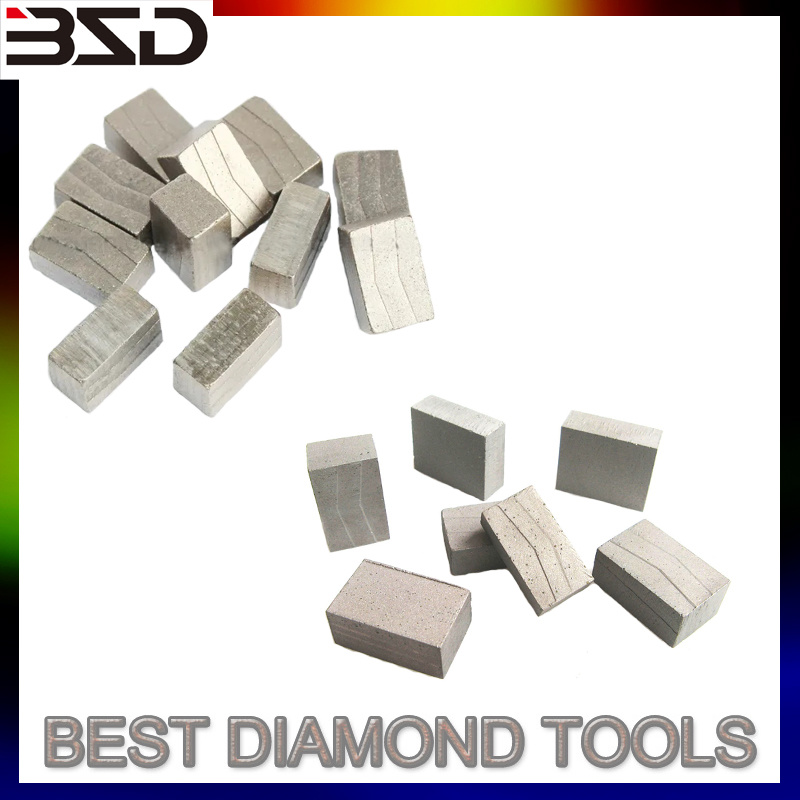

*Unique V design of segment side face reduces blade stone interface friction that will make fast diamond exposed and high cutting efficiency with good debris removal and better cooling.
*Goog cutting result.This special design will not allow easy edge collapse ,break,tapered slab etc.
Applications:
*Thhis product is widely used for cutting stone.
Specifications | Core Thickness | Segment Dimension | Segment Number | Application | Note |
Φ900 | 5.5/5.0 | 24*7.0/6.6/6.2*15(20) | 64 | Granite | Silent or Non silent |
Φ1000 | 5.5/5.0 | 24*7.0/6.6/6.2*15(20) | 70 | ||
Φ1200 | 6/5.5 | 24*7.8/7.3/6.8*15(20) | 80 | ||
Φ1350 | 6.5 | 24*8.4/8.0/7.6*15(20) | 88 | ||
Φ1600 | 7 | 24*9.4/8.9/8.4*15(20) | 104/108 | ||
Φ1800 | 8 | 24*10.0/9.5/9.0*15(20) | 120 | ||
Φ2000 | 8/8.5 | 24*10.6/10.2/9.8*15(20) | 128/132 | ||
Φ2200 | 8.5/9 | 24*11.0/10.5/10.0*15(20) | 132/136 | ||
Φ2500 | 8.5/9 | 24*11.5/11/10.5*15(20) | 140 | ||
Φ3000 | 9/9.5 | 24*12.5/12/11.5*20(30) | 160 | ||
Φ3500 | 9/9.5 | 24*13.5/13/12.5*20(30) | 180 |
*Other specifications are also available upon request.
