Split Segment U Gullet Diamond Segments for Granite

  • BSD

Product Description
      *Unique U gullet design on segment circumference and V step design of segment side face allows extremely high cutting efficiency.Besides,this creative design of segment stucture reduces blade stone interface while cutting,decreases cutting friction.Meanwhile,it makes ideal debris removal and better cooling,reduces frictional heat gain and noise produced by resonance effectively.
      *Good cutting result.This special design will not allow easy edge collapse,broken,slab bend etc.
      *This product is widely used for cutting stone .

Specification Core  Thickness  Segment Dimensiion Segment Number Application Note
Φ300 2.2/2.0 41*3.6/3.3/3.0*15(12) 21 Granitr Silent or Non Silent
Φ350 2.4/2.2 41*3.6/3.3/3.0*15(12) 24
Φ400 2.8/2.4 41*4.0/3.7/3.4*15(12) 28
Φ500 3.2/3.8 41*4.3/4.0/3.7*15(12) 36
Φ600 3.6/3.2 41*5.0/4.7/4.4*15(12) 42
Φ700 4.0/3.8 41*5.5/5.2/4.9*15(12) 50
Φ800 4.5/4.2 41*6.0/5.7/5.4*15(12) 57

*Other specifications are also available upon request.

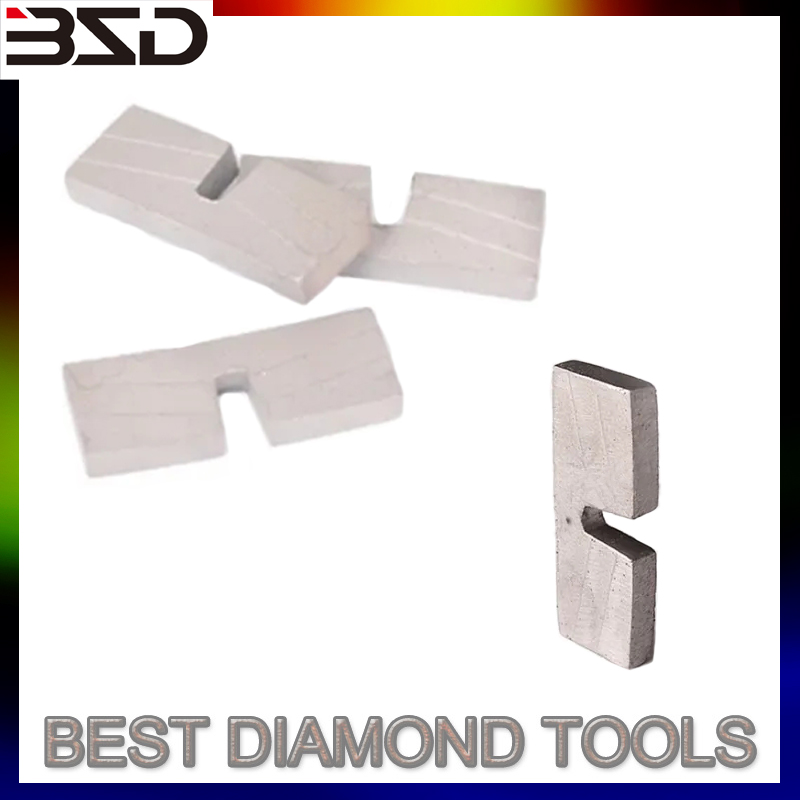

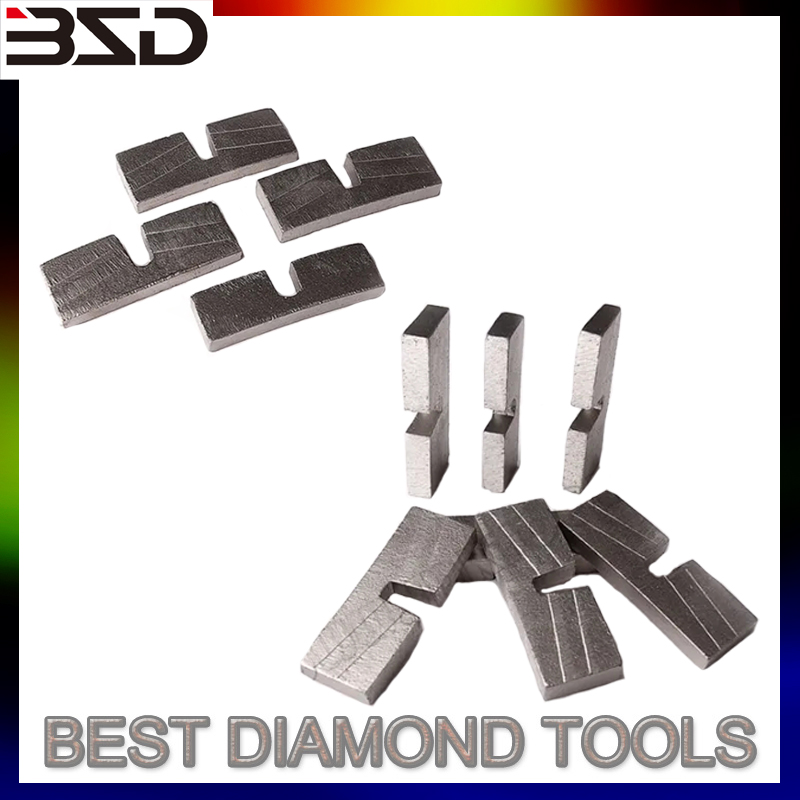

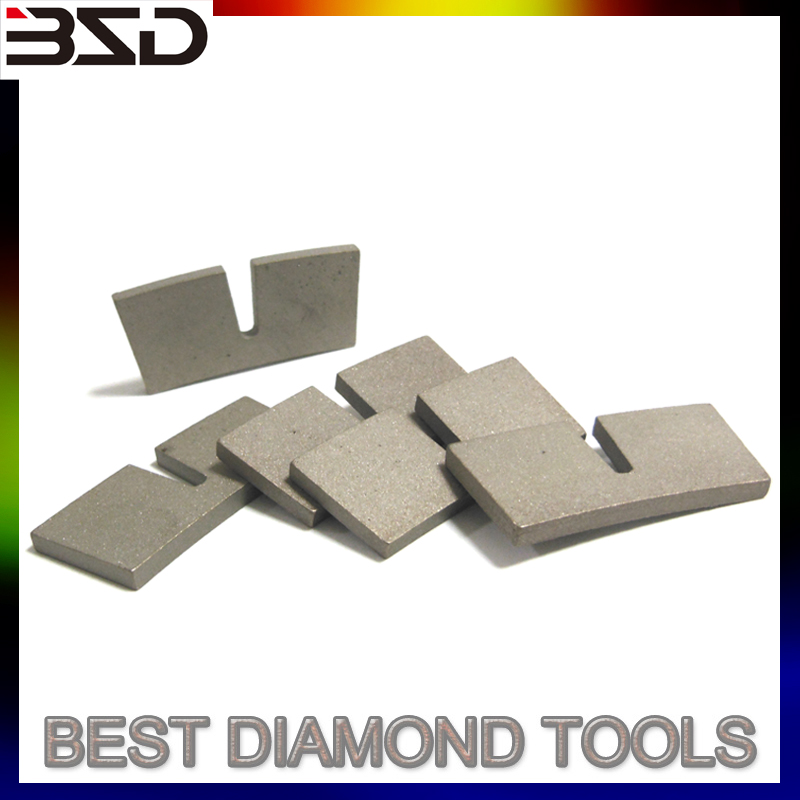

U shape segment 0u shape segment 1u shape segment 2u shape segment 3

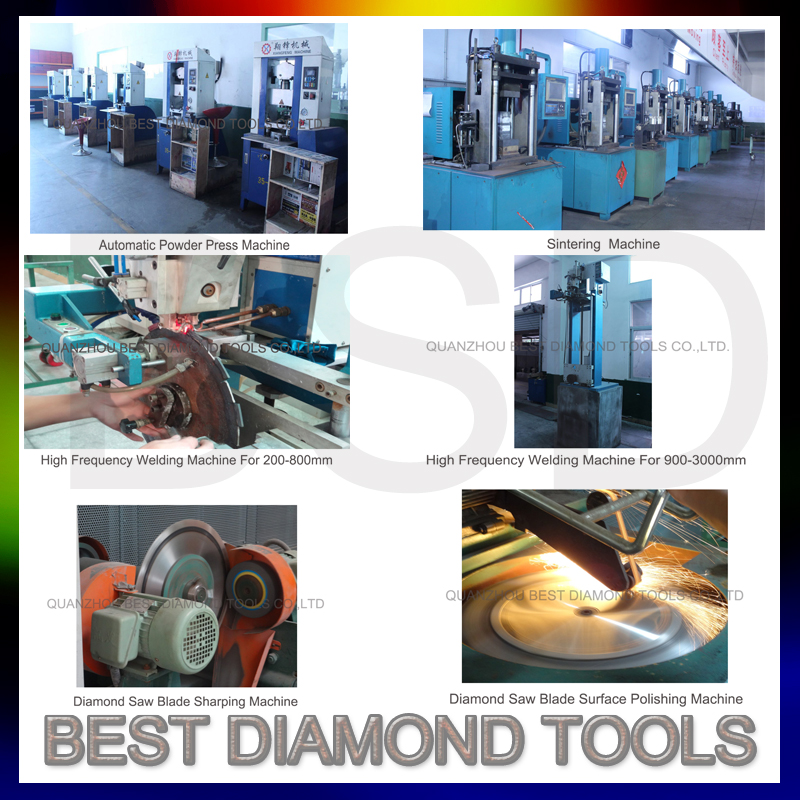

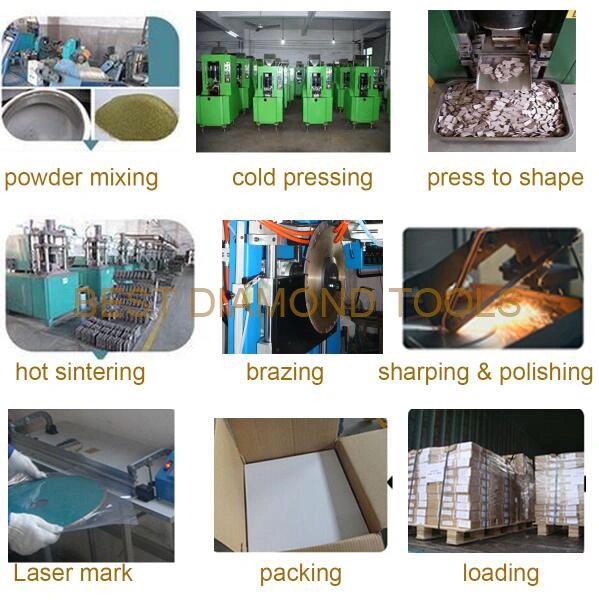

Produce Process
